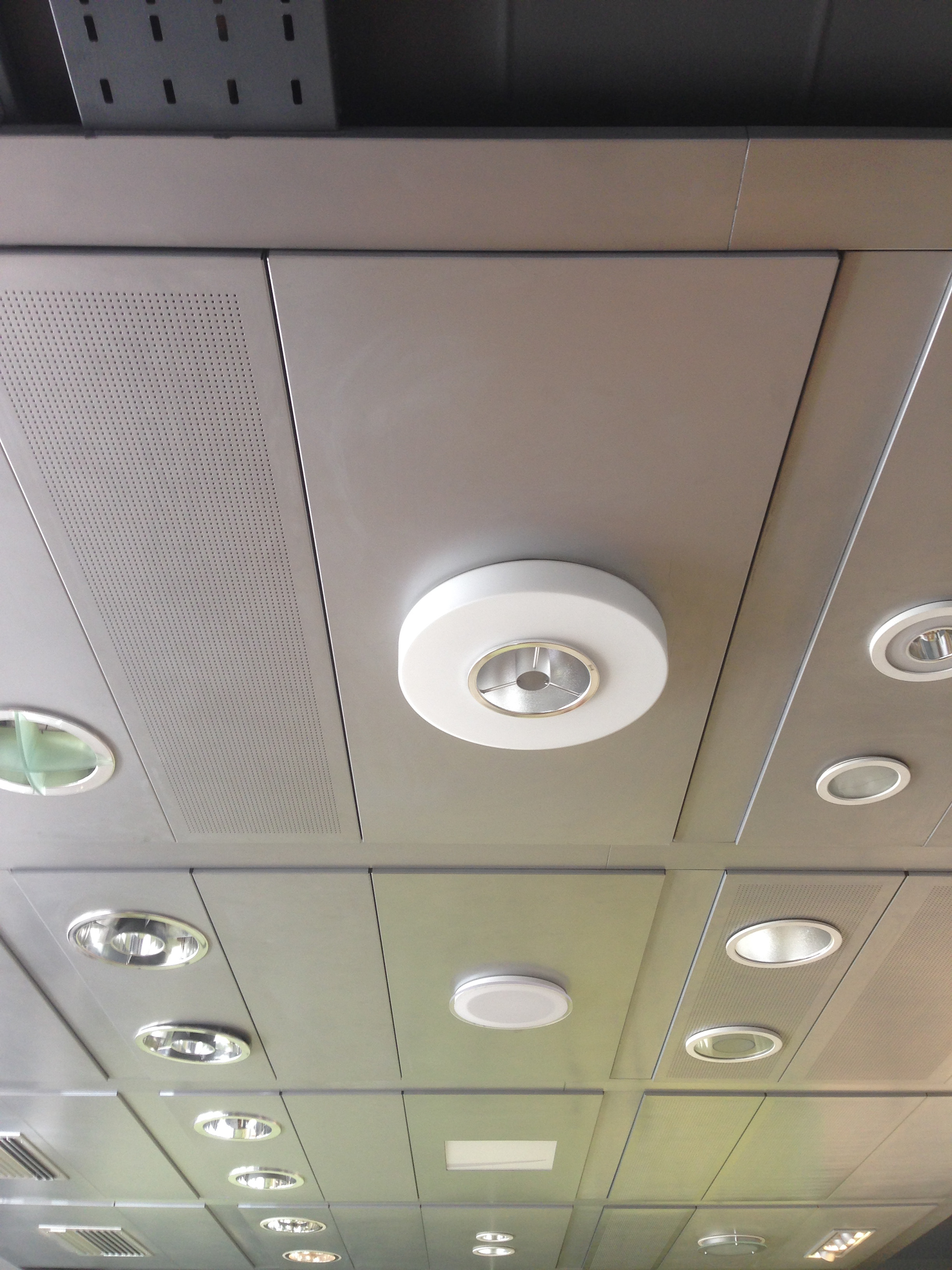

TETRA CLIP SYSTEM
The panels of the clip in system are manufactured in 0.6mm.,post painted
aluminium and 0.6mm, post painted galvanized steel.
Typical module size is 600x600mm, creating a 5mm.“shadow gap” with
the adjacent panels.
They are applied on a specific hidden structure roll formed 3mm. thick
profile, by simply pressing the panel into the structure.
The system is suspended to the existing ceiling by means of a rigid 4mm.
rod and pre-stressed steel spring.

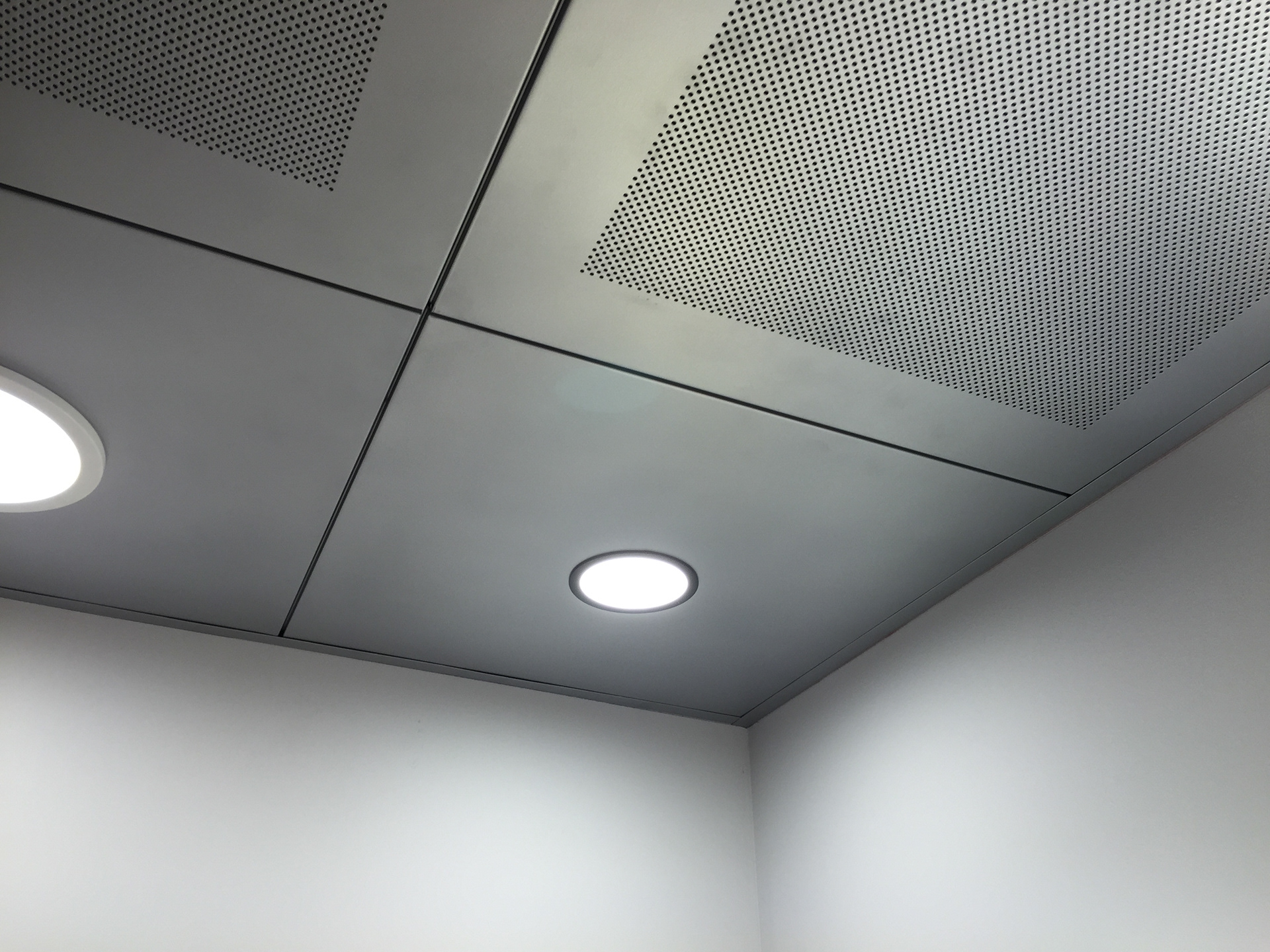

The perimeter of the false ceiling is finished with a special post painted
steel.Perforated panels combined with insulating materials are highly
sound absorbent.
They are a versatile architectural element suitable for all types of
installation and a present a highly flexible solution.
Suspended ceilings with panels are easy to install and allow access to
any overhead services resulting in rapid intervention and maintenance
when needed.
aluminium and 0.6mm, post painted galvanized steel.
Typical module size is 600x600mm, creating a 5mm.“shadow gap” with
the adjacent panels.
They are applied on a specific hidden structure roll formed 3mm. thick
profile, by simply pressing the panel into the structure.
The system is suspended to the existing ceiling by means of a rigid 4mm.
rod and pre-stressed steel spring.
The perimeter of the false ceiling is finished with a special post painted
steel.Perforated panels combined with insulating materials are highly
sound absorbent.
They are a versatile architectural element suitable for all types of
installation and a present a highly flexible solution.
Suspended ceilings with panels are easy to install and allow access to
any overhead services resulting in rapid intervention and maintenance
when needed.
Products : Smeka twin led , Tetra clip in ceiling system

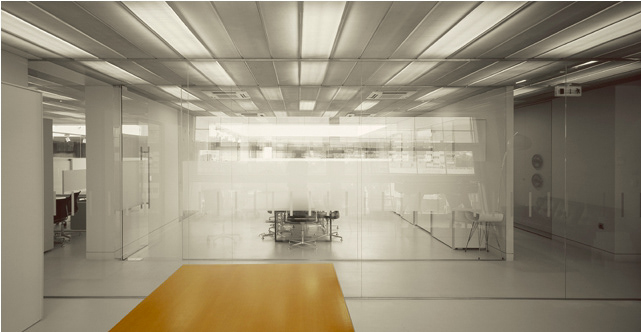

Products : Smeka linear led , metal ceiling T-Panel system
Products : Smeka custom lighting, X-Panel system
Products : Smeka bandraster system
Products : Smeka Apollo led, Tetra clip in ceiling system
Products : Smeka R-led minitrim, Tetra clip in ceiling system
Μεταλλικό Κάλυμμα για κανάλι Φωτισμού
Τύπος 81-6050, κατασκευασμένο από γαλβανισμένο χαλυβδόφυλλο πάχους 1,0mm.Φέρει μαγνήτες για την στερέωσή του στην μεταλλική κατασκευή. Η διαμόρφωση γίνεται σε μηχανήματα ακριβείας CNC. Σε κάθε άκρη υπάρχει ατσαλόσυρμα διατομής ø 1mm. το οποίο ασφαλίζει στον μεταλλικό σκελετό έτσι ώστε όταν αφαιρείται το κάλυμμα να γίνεται εύκολα η πρόσβαση. Ηλεκτροστατικά βαμμένο σε χρώμα RAL.Το μήκος του καθορίζετε ανάλογα με το μήκος του καναλιού.Σε κάθε κανάλι απαιτούνται δύο μεταλλικά καλύμματα. Διαστάσεις: ~ 30mm. x 120mm. x τρ.μ (μέγιστο μήκος 3.000mm.)
For more details on metal ceiling sytstems please contact us
